Case Study – Custom Alternator Cover

Custom Alternator Cover

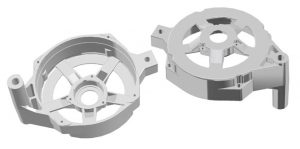

  • 3D CAD modeling of a hybrid GM/Ford alternator cover developed from provided samples of each and verbally expressed requirements from customer
  • Part file data used to create a sand cast pattern and needed to account for aluminum sand cast shrink rates
  • Provided detailed engineering drawings to supplier with all information required for fabrication of the sand cast pattern
